Interface
Access Policy Group

You will create various policy groups for your lab. The access policy group is going to be used for the Layer3 connectivity.

Step 1 - Navigate to Interface Policy Groups to Create Access Port Policy Group

To create an Access Port Policy Group, naviage to Policy Groups by clicking:

  1. Fabric
  2. Access Policies
  3. Expand Interfaces by clicking the toggle arrow (>)
  4. Expand Leaf Interfaces by clicking the toggle arrow (>)
  5. Expand Policy Groups by clicking the toggle arrow (>)
  6. Right-click on Leaf Access Port
  7. Click Create Leaf Access Port Policy Group

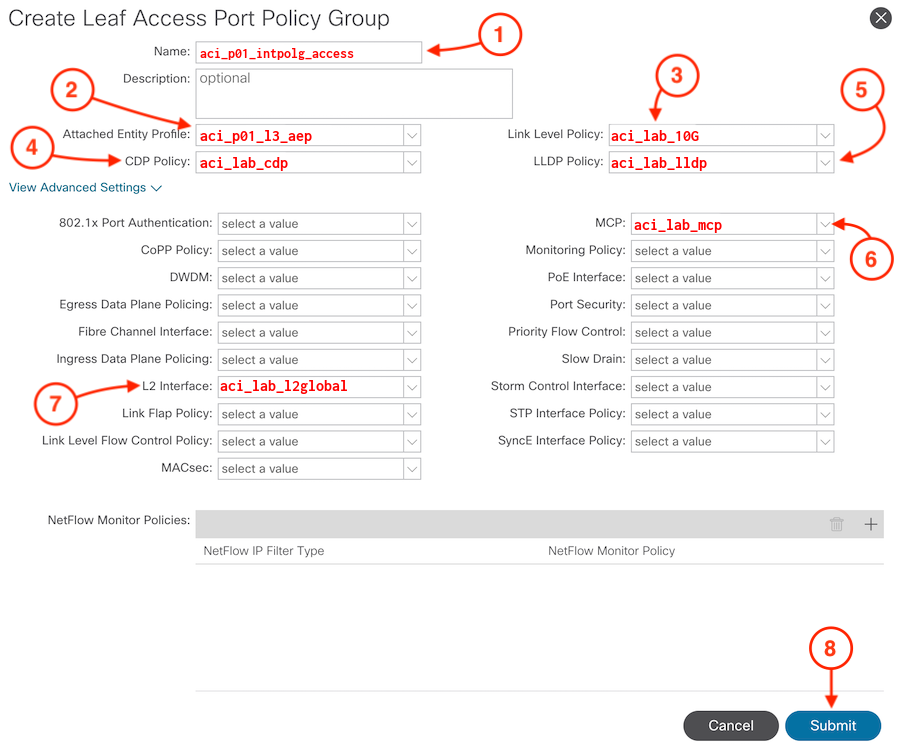

Step 2 - Create Access Port Policy Group

In the Create Leaf Access Port Policy Group popup:

  1. Name the Policy Group: aci_p01_intpolg_access
  2. For the AEP, select aci_p01_l3_aep
  3. For Link Level Policy, select aci_lab_10G
  4. For CDP Policy, select aci_lab_cdp
  5. For LLDP Policy, select aci_lab_lldp
  6. For MCP Policy, select aci_lab_mcp
  7. For L2 Interface Policy, select aci_lab_l2global
  8. Click Submit

Please verify your work and continue to the next section to complete Port Channel access policies.

Verify your work
