Port Channel Interface build

Now you will continue creating the Port Channel interfaces.

Step 1 - Launch Wizard to Create Final Port Channel Interface and Switch Profiles

To launch the interface and switch profile wizard, you need to locate the very top of the navigation pane and find Quick Start. Right underneath is the Interface Configuration wizard. To get there navigate to:

  1. Fabric
  2. Access Policies
  3. Click Interface Configuration
  4. On the right of the screen you will see a button called Actions. You will click this.
  5. From this Menu select Configure Interfaces

Step 2 - Switch to Interface Aggregation Type to PortChannel

  1. Toggle the Interface Aggreation Type to PC.
  2. Click on Select Node

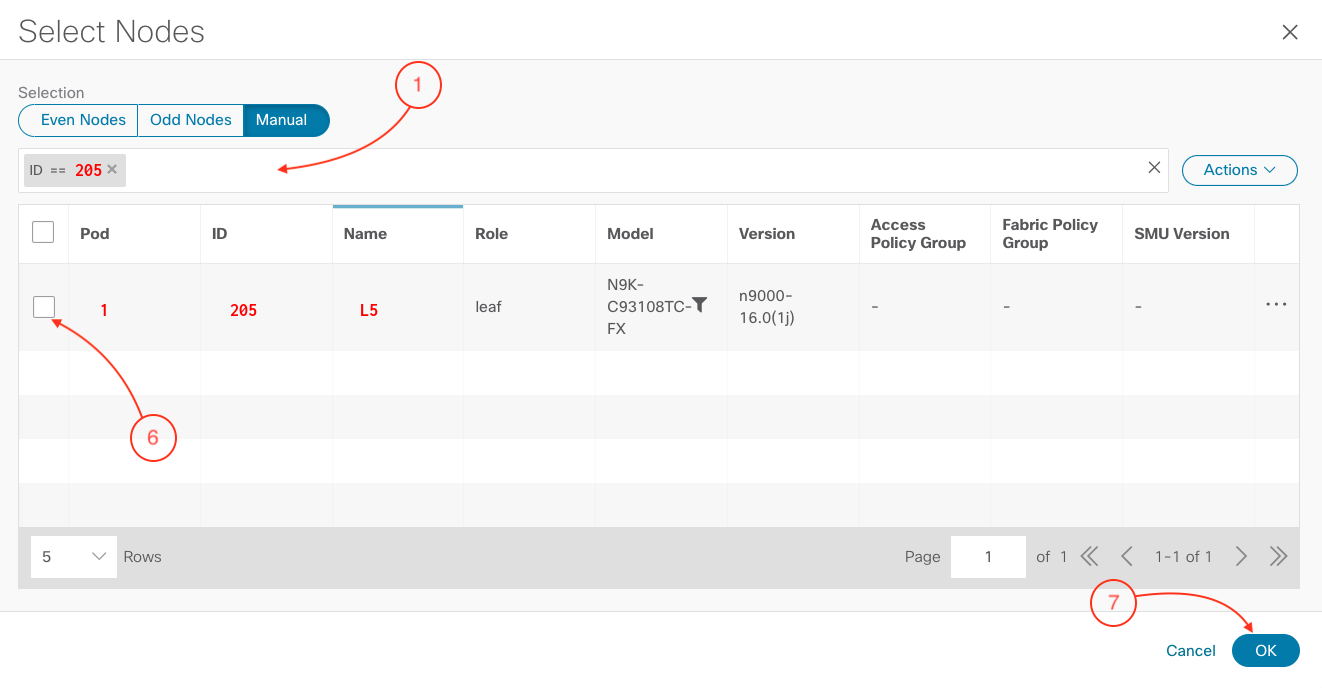

Step 3 - Select Node

  1. Click on Filter by attributes
  2. Select ID
  3. Select ==
  4. Type 205
  5. Hit Enter
  6. Select 205 - You should see the row turn blue now
  7. Click OK

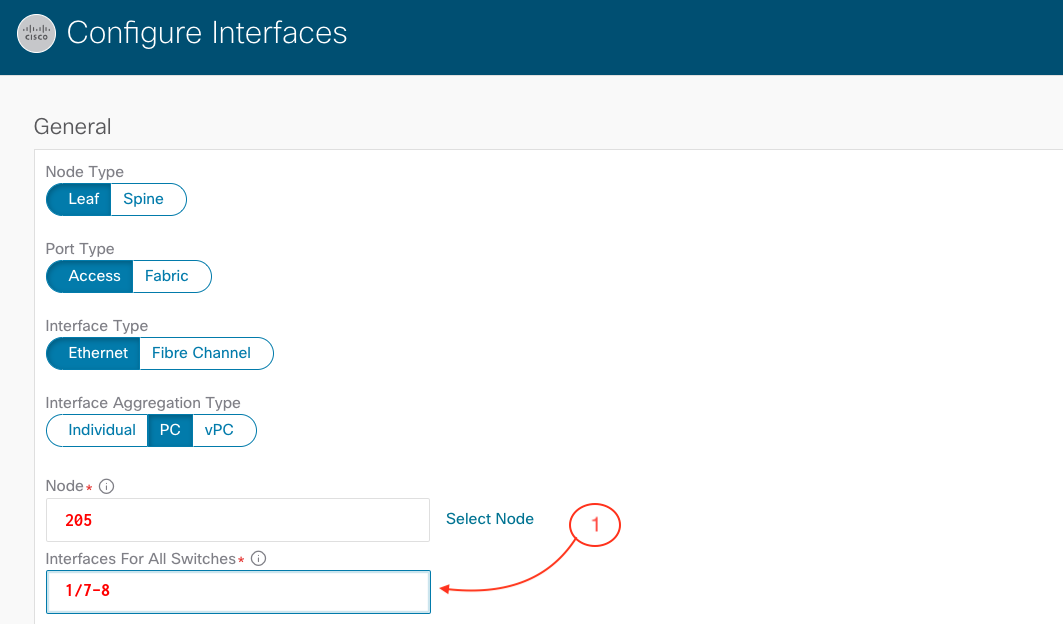

Step 4 - Select Interfaces For All Switches

  1. Interfaces For All Switches: 1/7-8

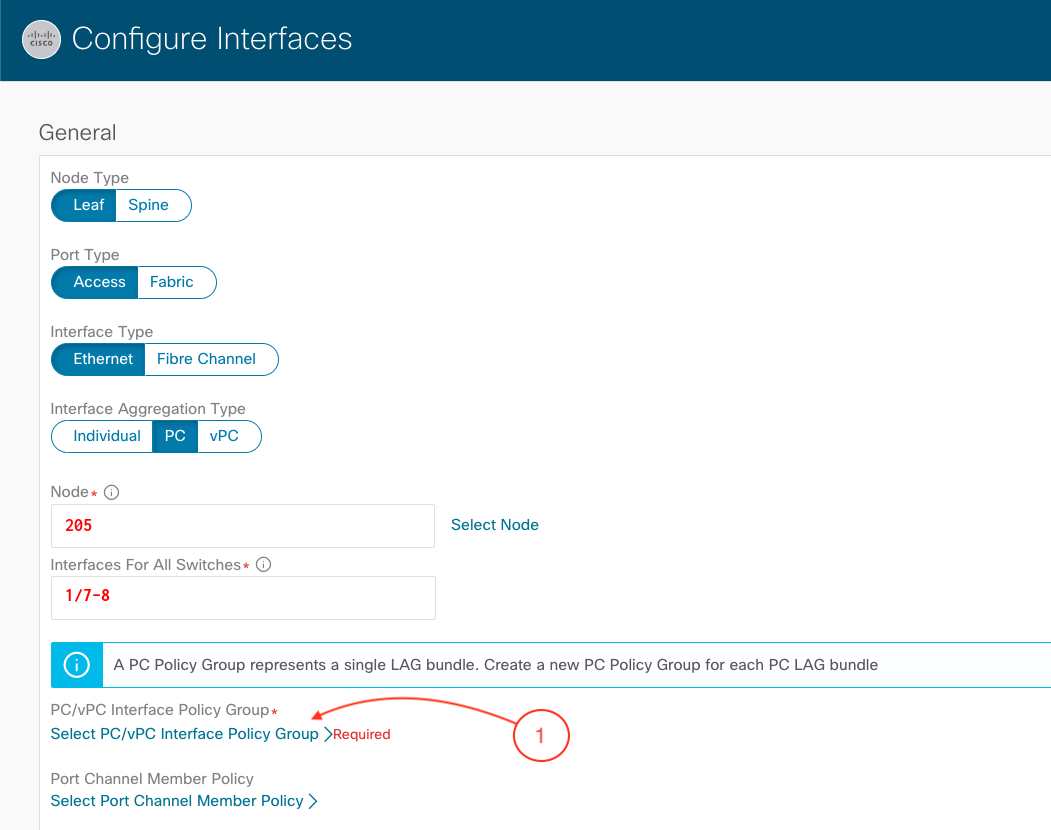

Step 5 - Select PC Interface Policy Group

  1. Click on Select PC/vPC Interface Policy Group

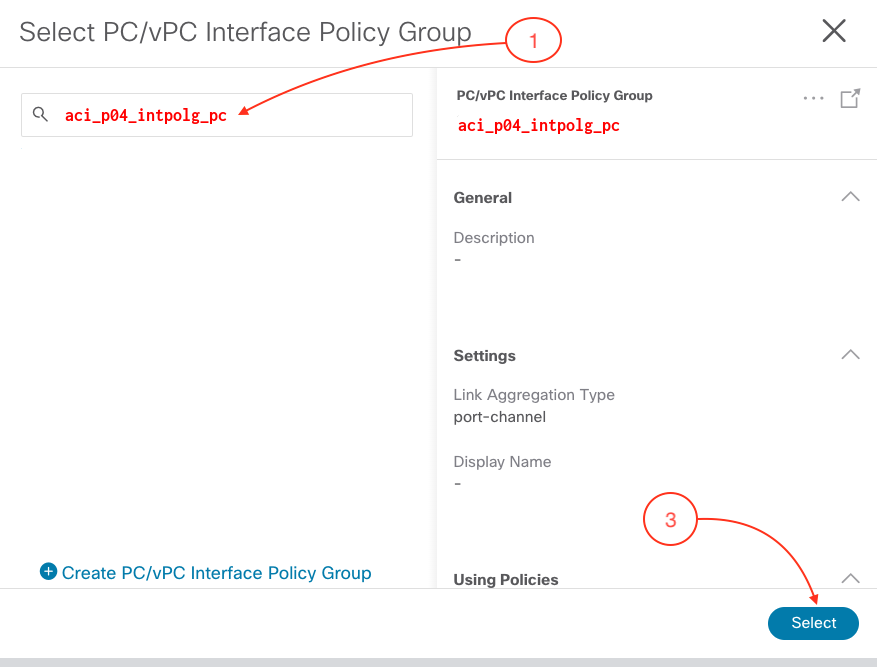

Step 6 - Select PC Interface Policy Group

  1. Click on the Search box
  2. Insert aci_p04_intpolg_pc
  3. Click Select

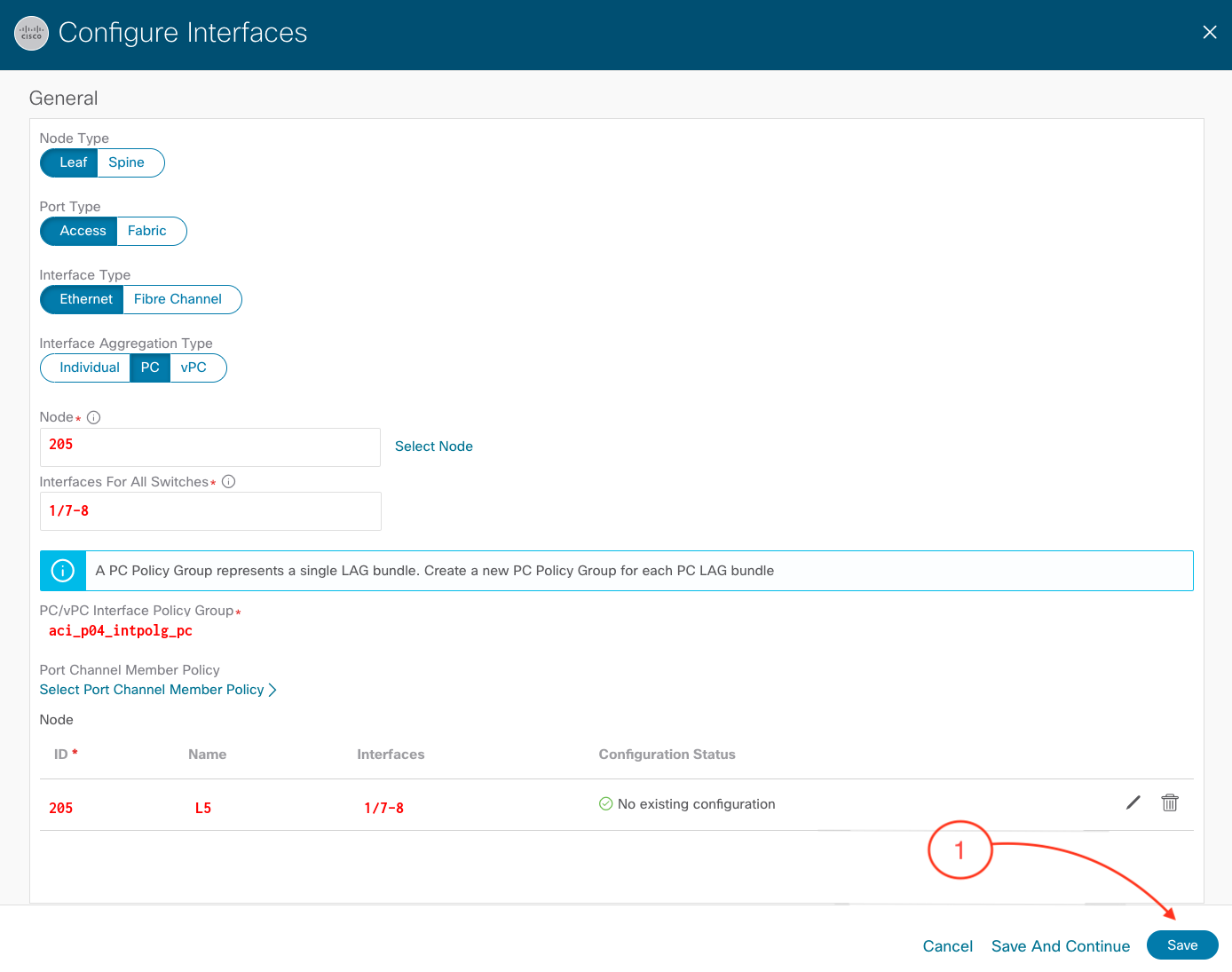

Step 7 - Save

  1. Click on Save
