Wizard
Virtual Port Channel Interface build

Now you will continue creating the Virtual Port Channel (vPC) interfaces.

Step 1 - Launch Wizard to Create Final Virtual Port Channel Interface and Switch Profiles

To launch the interface and switch profile wizard, you need to locate the very top of the navigation pane and find Quick Start. Right underneath is the Interface Configuration wizard. To get there navigate to:

  1. Fabric
  2. Access Policies
  3. Click Interface Configuration
  4. On the right of the screen you will see a button called Actions. You will click this.
  5. From this Menu select Configure Interfaces

Step 2 - Switch to Interface Aggregation Type to vPC

  1. Toggle the Interface Aggreation Type to vPC.
  2. Click on Select vPC Leaf Switch Pair

Step 3 - Select vPC Leaf Switch Pair

  1. Select VPC-Leafs-207-208
  2. Click Select

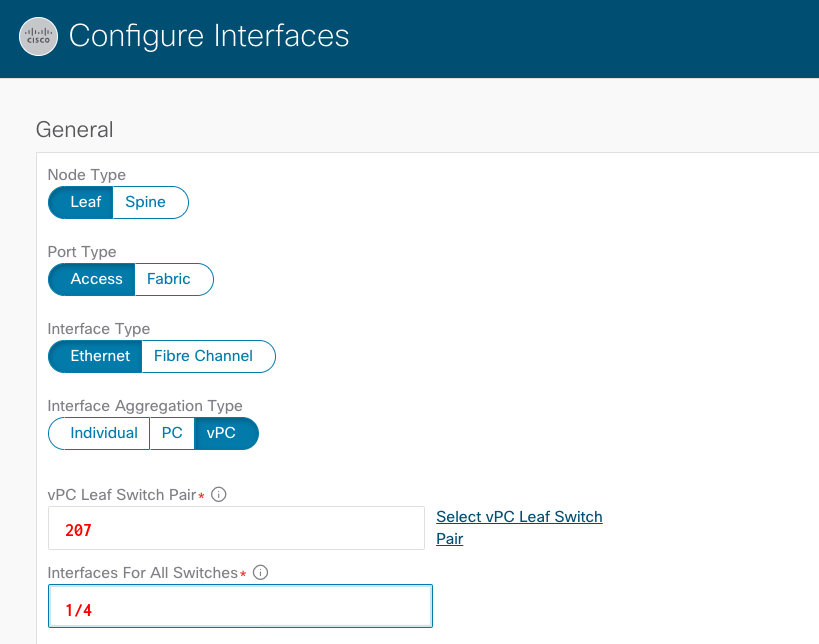

Step 4 - Select Interfaces For All Switches

  1. Interfaces For All Switches: 1/4

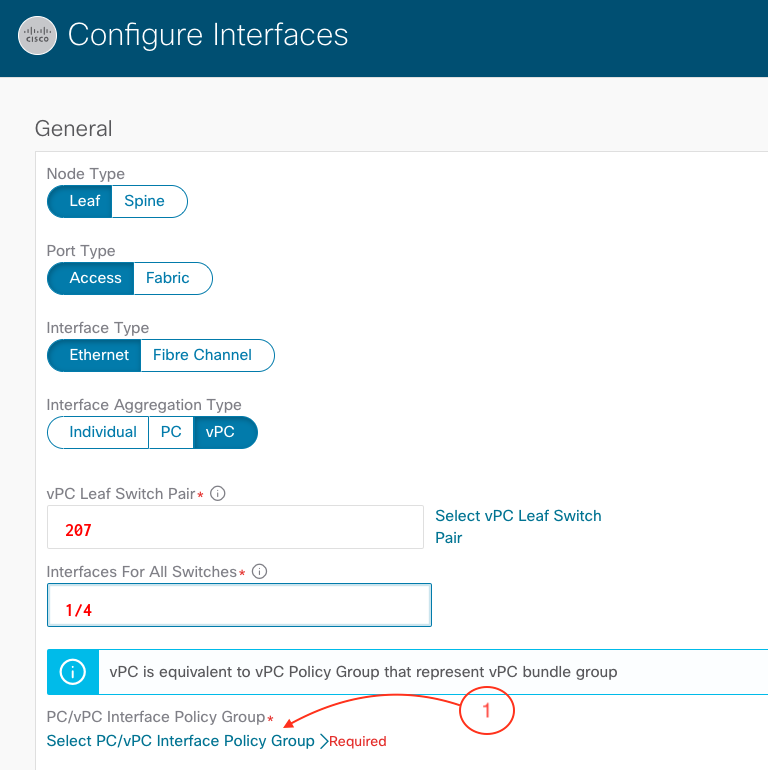

Step 5 - Select vPC Interface Policy Group

  1. Click on Select PC/vPC Interface Policy Group

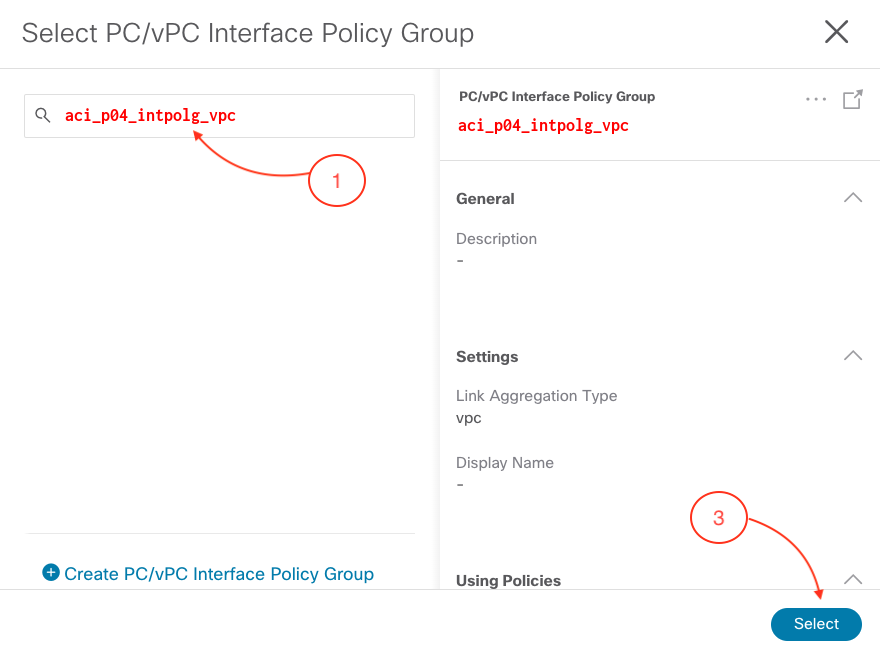

Step 6 - Select vPC Interface Policy Group

  1. Click on the Search box
  2. Insert aci_p04_intpolg_vpc
  3. Click Select

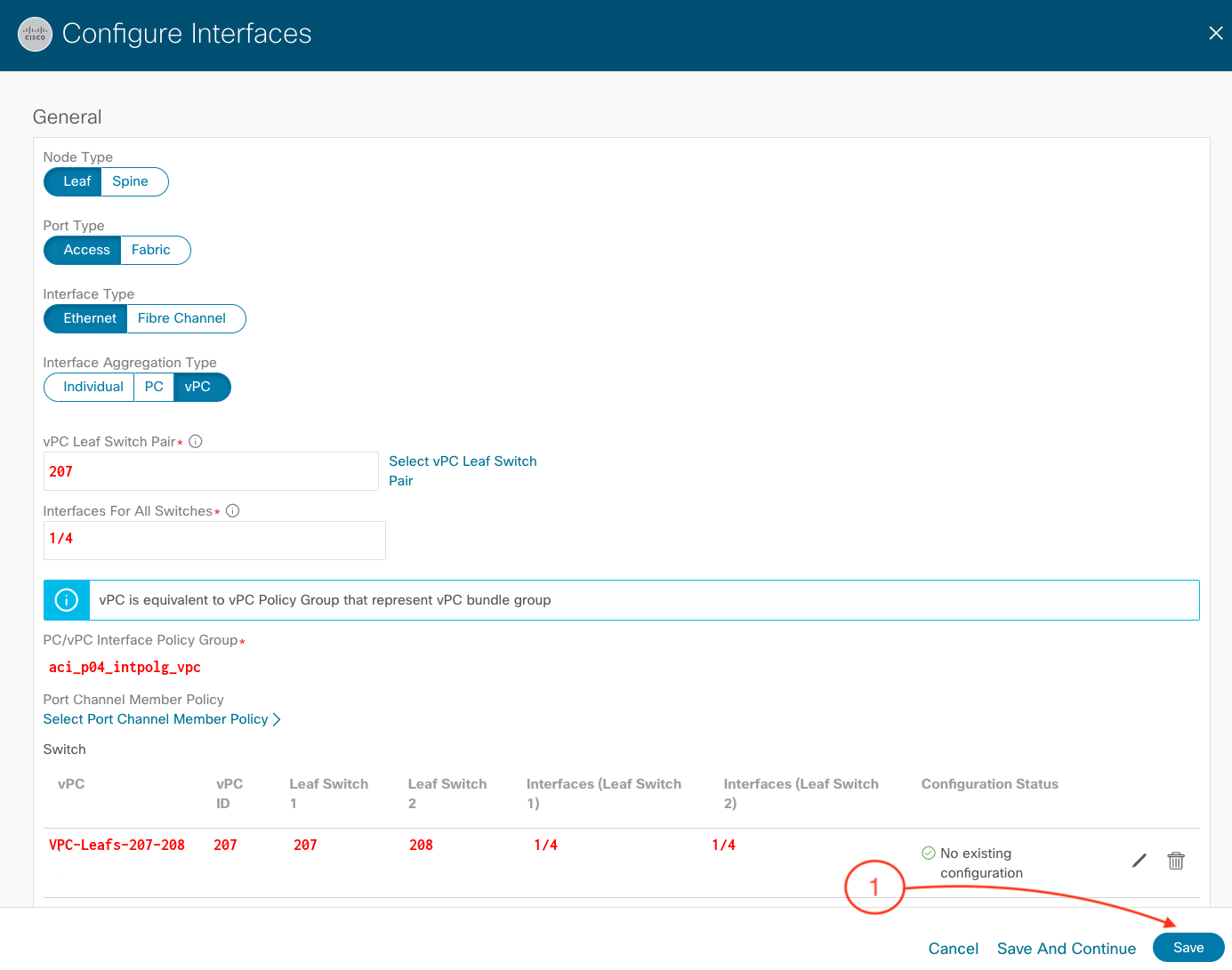

Step 7 - Save

  1. Click on Save
