In latest ACI versions, simplified Wizards have been constructed to assist the user with creating policy structures in the fabric. One such wizard can take all the policies we have created and combine them into a functional access policy tree.

You will utilize this wizard to create three separate policy trees, one for the Layer 3 outside interface ( routing outside the fabric ), one for the port channel that was built for layer 2 VLANs and the final for the Virtual Port Channel interface to be built for our virtualized resources.

Step 1 - Launch Wizard to Create Final Access Port Interface and Switch Profiles

To launch the interface and switch profile wizard, you need to locate the very top of the navigation pane and find Quick Start. Right underneath is the Interface Configuration wizard. To get there navigate to:

1. Fabric
2. Access Policies
3. Click Interface Configuration
4. On the right of the screen you will see a button called Actions. You will click this.
5. From this Menu select Configure Interfaces

Step 2 - Create Access Port Interface and Switch Profiles

The first interface that you are going to build is going to be the Access Port Interface that is going to be used for the L3Out interface of your POD.

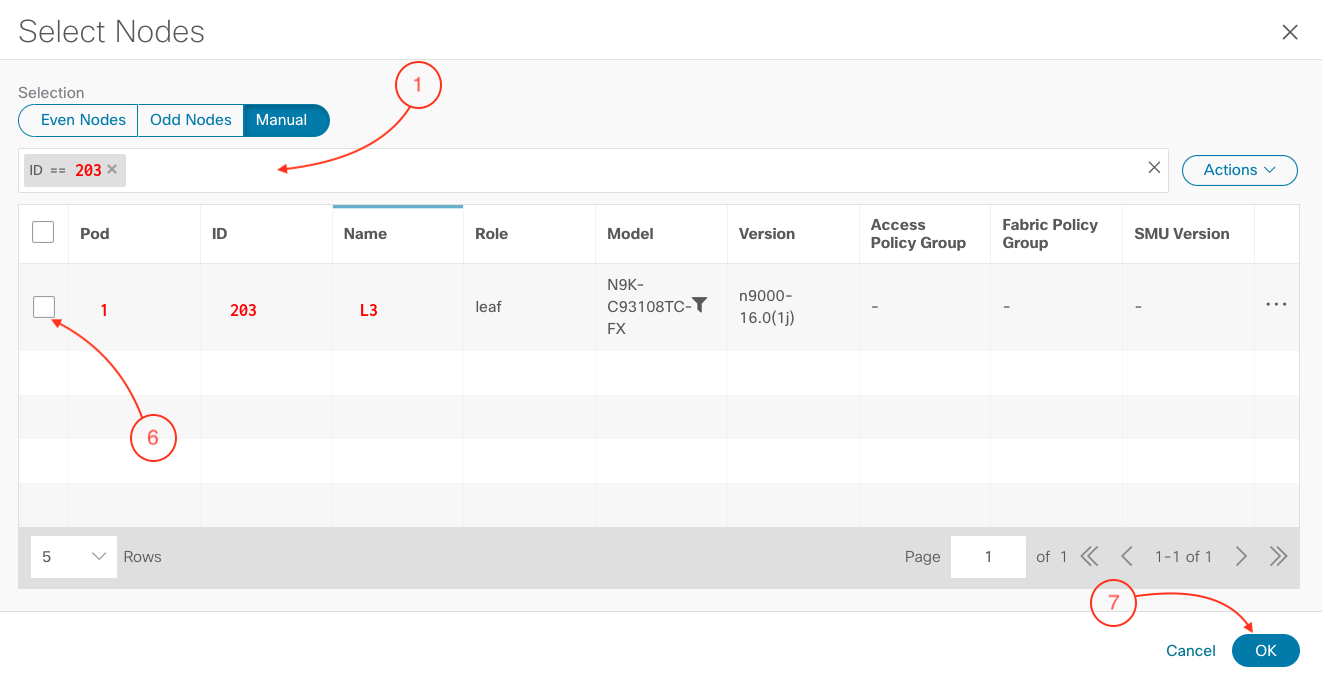

Step 3 - Select Node

1. Click on Filter by attributes
2. Select ID
3. Select ==
4. Type 203
5. Hit Enter
6. Select 203 - You should see the row turn blue now
7. Click OK

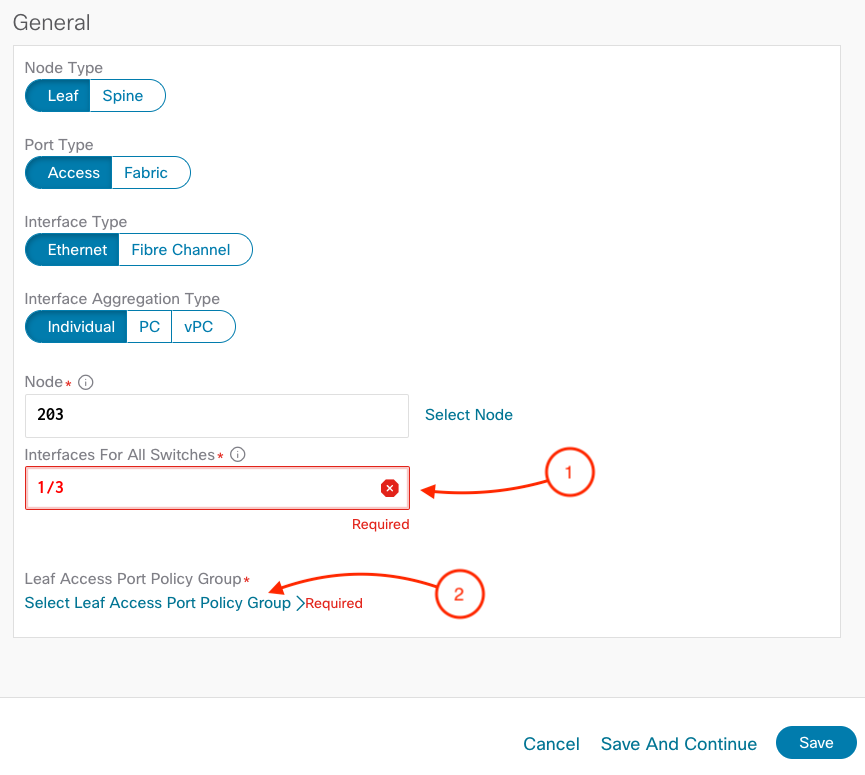

Step 4 - Select Interfaces For All Switches

1. Interfaces For All Switches: 1/3
2. CLick on Select Leaf Access Port Policy Group

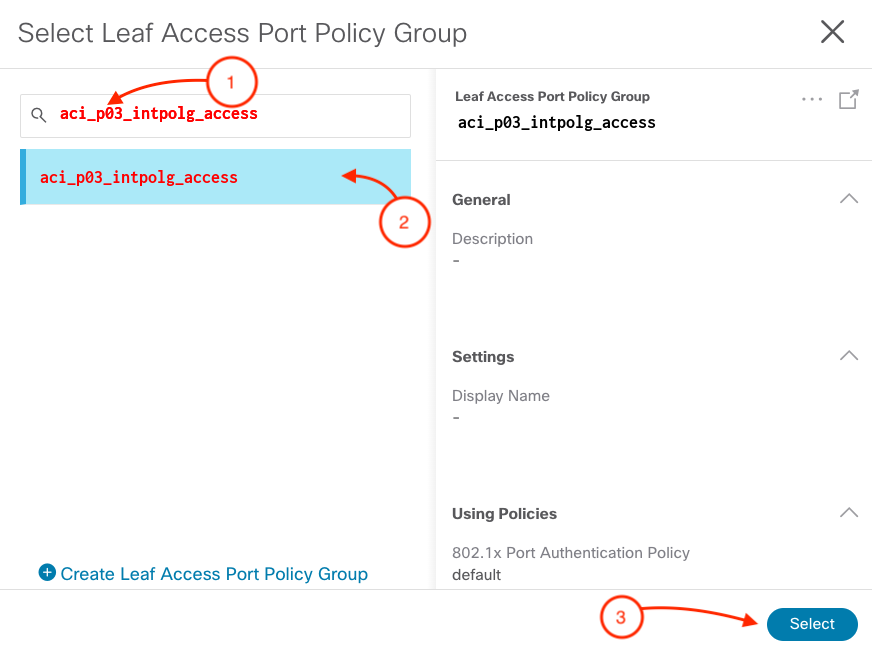

Step 5 - Select Leaf Access Port Policy Group

1. Click on the Search box
2. Insert aci_p03_intpolg_access
3. Click Select

Step 6 - Save

1. Click on Save
