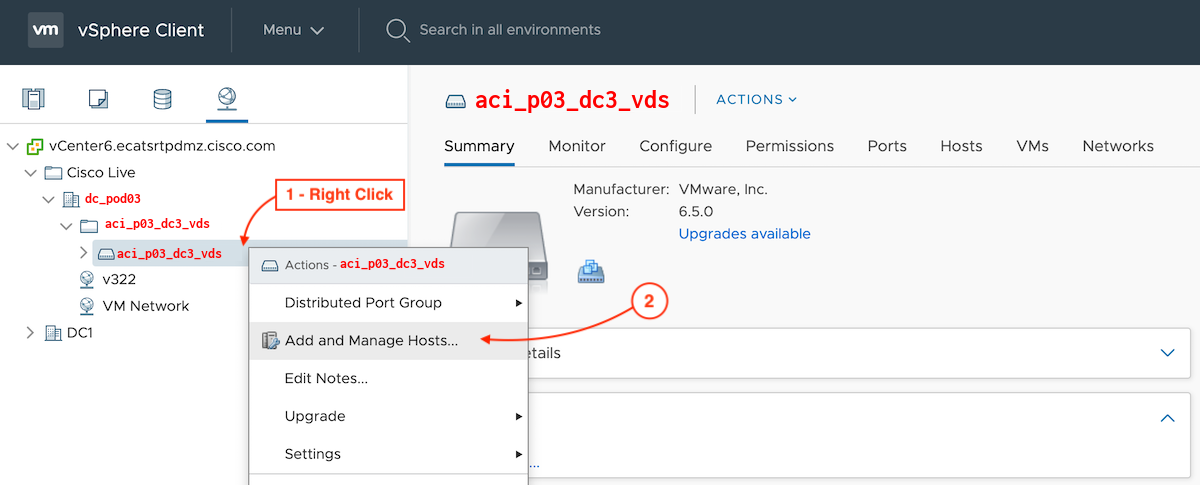

Step 1 - Add and Manage Hosts Wizard

To complete the integration, an ESXi host needs to be added to the vDS created by APIC:

1. Right-Click on your vDS created by APIC, aci_p03_dc3_vds
2. In the dropdown, select Add and Manage Hosts...

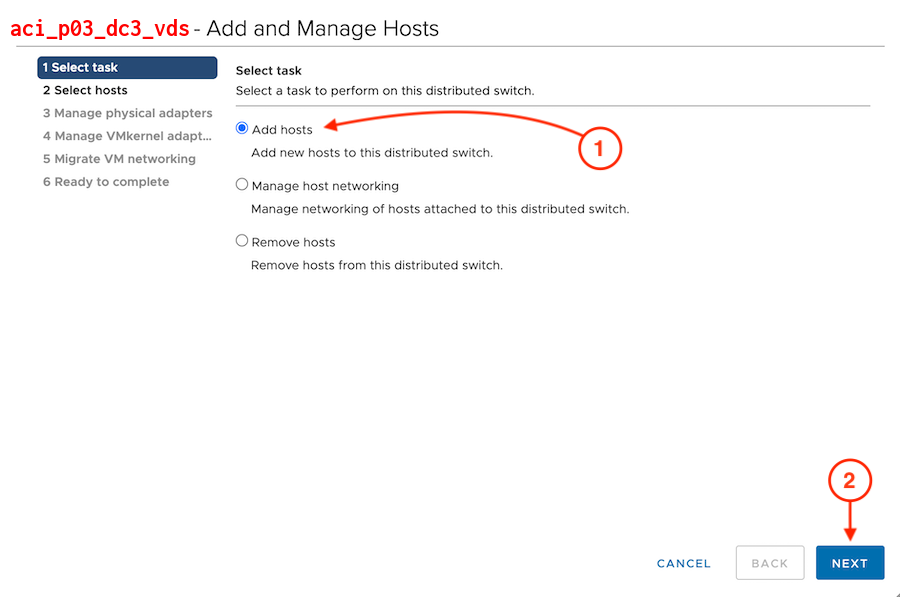

Step 2 - Select the Task to Add Hosts to vDS

1. Select Add hosts
2. Click Next

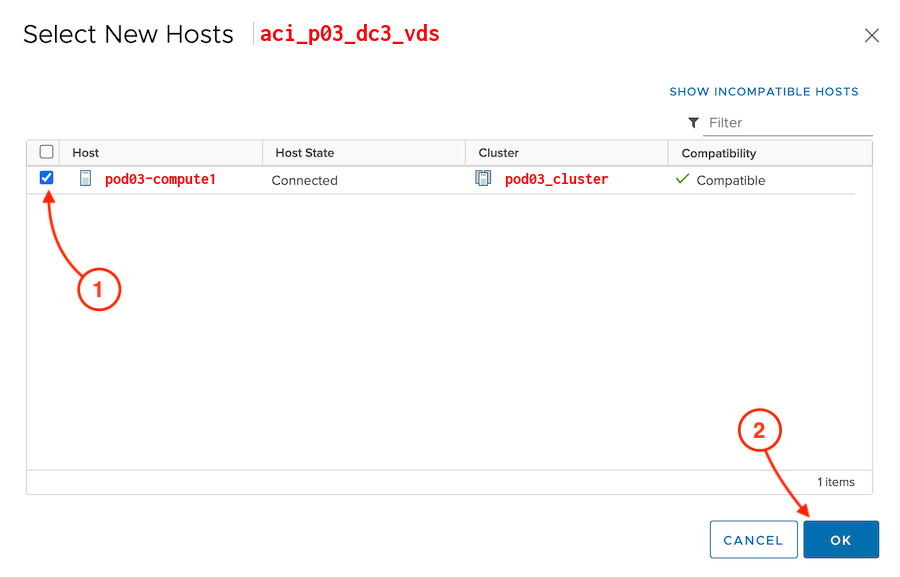

Step 4 - Select Pod ESXi Host

In the Select new hosts popup:

1. Select your ESXi host: pod03-compute1
2. Click OK

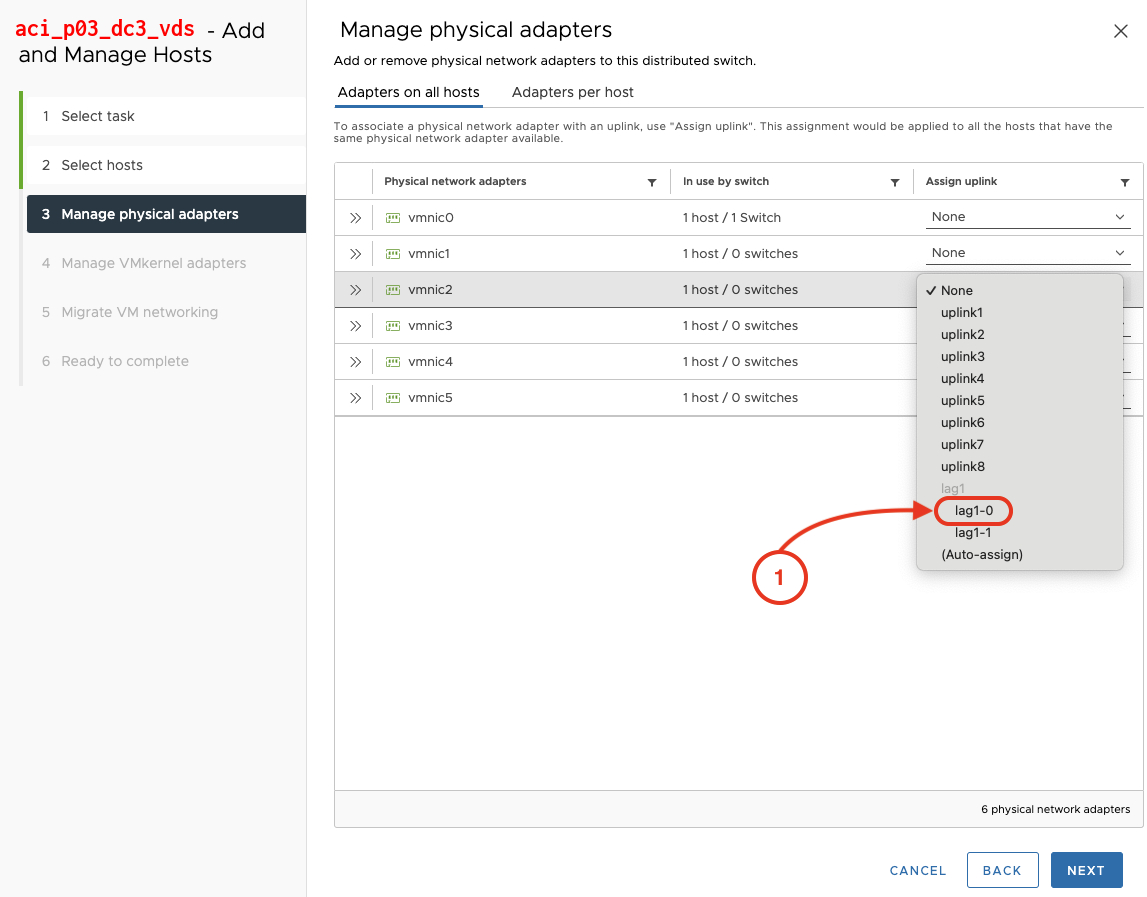

Step 6 - Assign Uplinks from Pod ESXi Host

Assign uplinks from your Pod ESXi host:
1. Click on vmnic2
2. Click Assign lag1-0

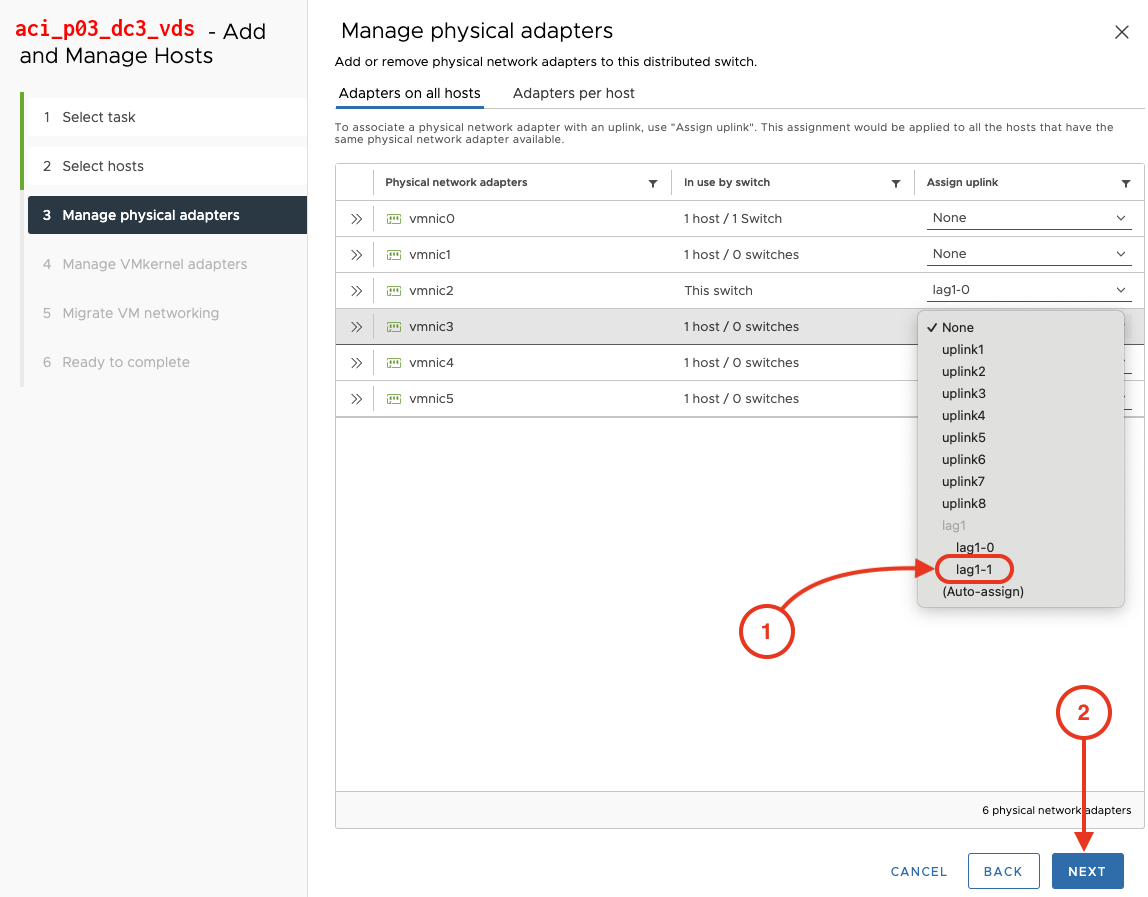

Assign another vmnic from your Pod ESXi host:
3. Click on vmnic3
4. Click Assign lag1-1

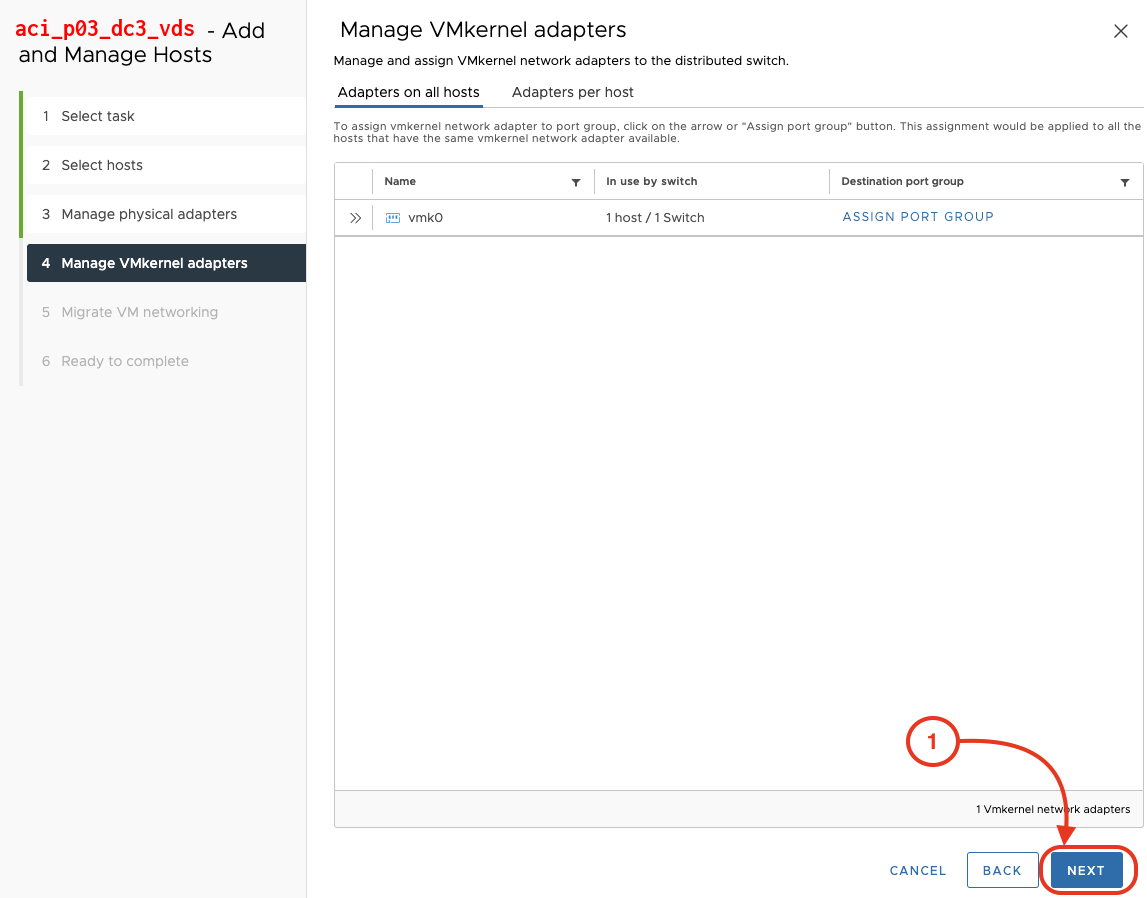

Step 7 - Manage VMkernel Adapters

1. No Changes - Click Next

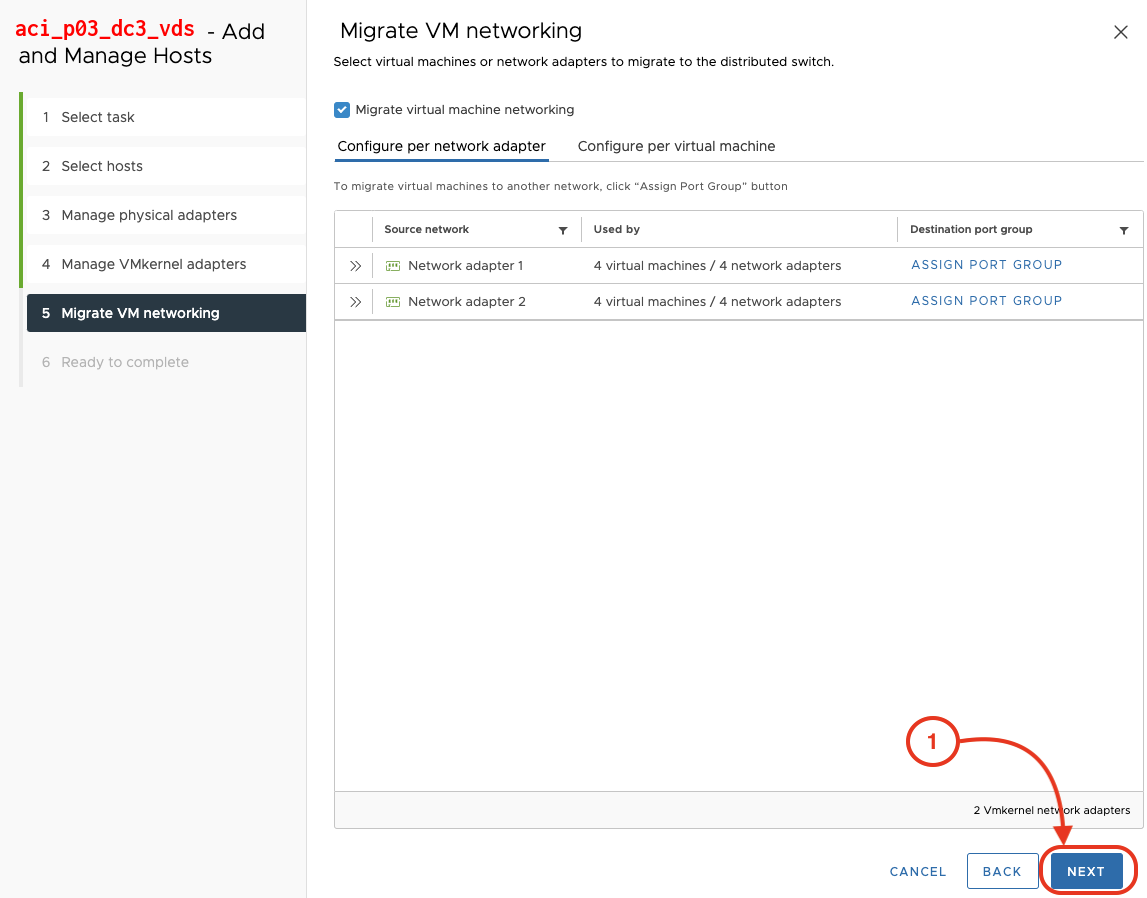

Step 8 - Migrate VM Networking

1. No Changes - Click Next

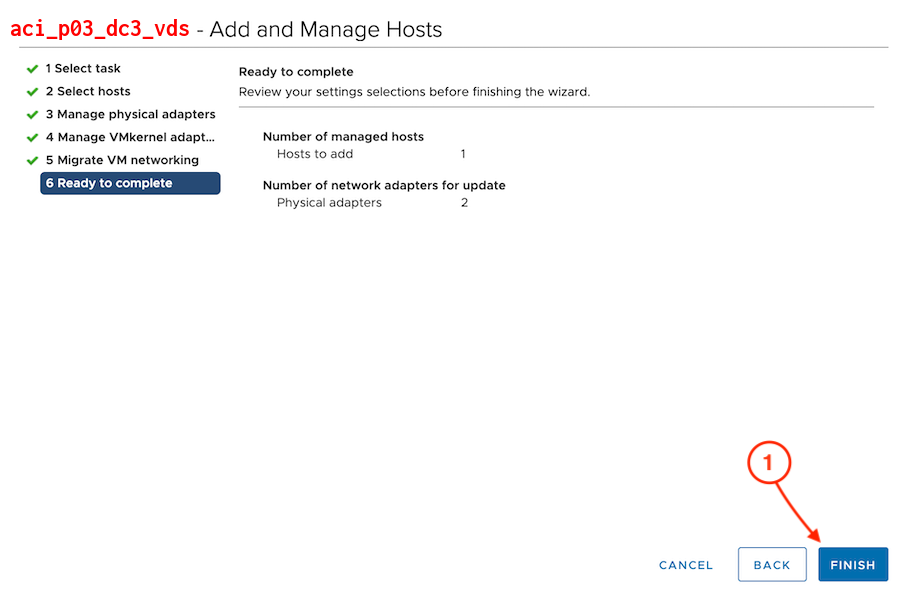

Step 9 - Complete Pod ESXi Host Uplink Assignment

1. Click Finish

Continue to the next section where you will return to the APIC and start creating your Tenant policies.
