VPC Policy Groups

This VPC interface policy group is going to be used to connect to the compute host for the VMM domain.

Step 1 - Navigate to Policy Groups to Create VPC Interface Policy Group

To create a VPC Policy Group, naviage to Policy Groups by clicking:

  1. Fabric
  2. Access Policies
  3. Expand Interfaces by clicking the toggle arrow (>)
  4. Expand Leaf Interfaces by clicking the toggle arrow (>)
  5. Expand Policy Groups by clicking the toggle arrow (>)
  6. Right-click on VPC Interface
  7. Click Create VPC Interface Policy Group

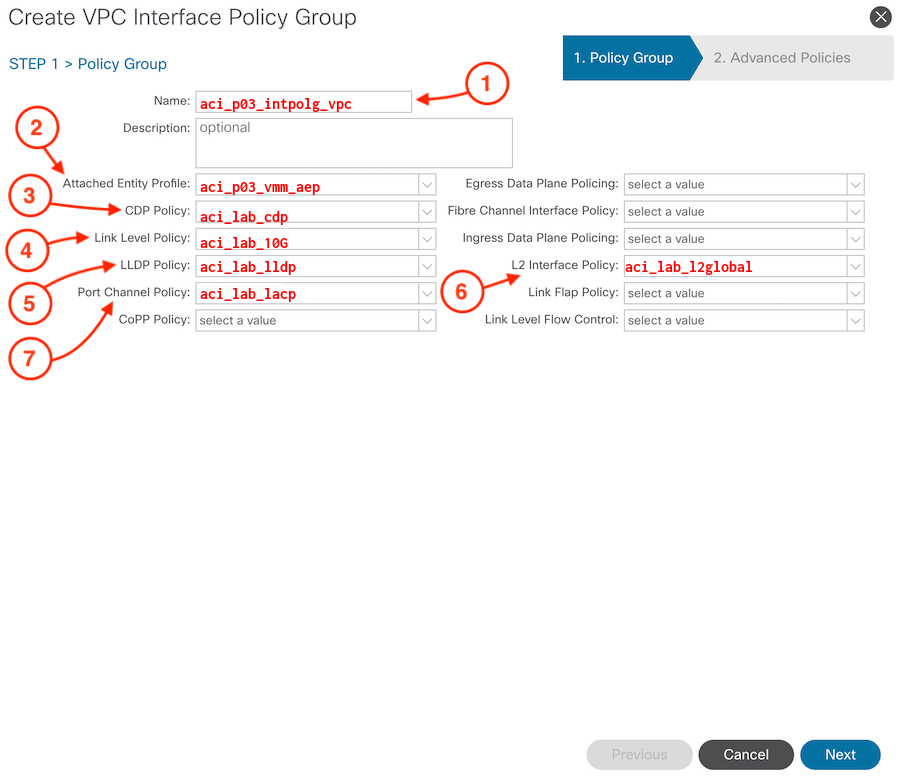

Step 2 - Create VPC Interface Policy Group

In the Create VPC Policy Group popup:

  1. Name the Policy Group: aci_p03_intpolg_vpc
  2. For the AEP, select aci_p03_vmm_aep
  3. For CDP Policy, select aci_lab_cdp
  4. For Link Level Policy, select aci_lab_10G
  5. For LLDP Policy, select aci_lab_lldp
  6. For L2 Interface Policy, select aci_lab_l2global
  7. For Port Channel Policy, select aci_lab_lacp
  8. Click Next

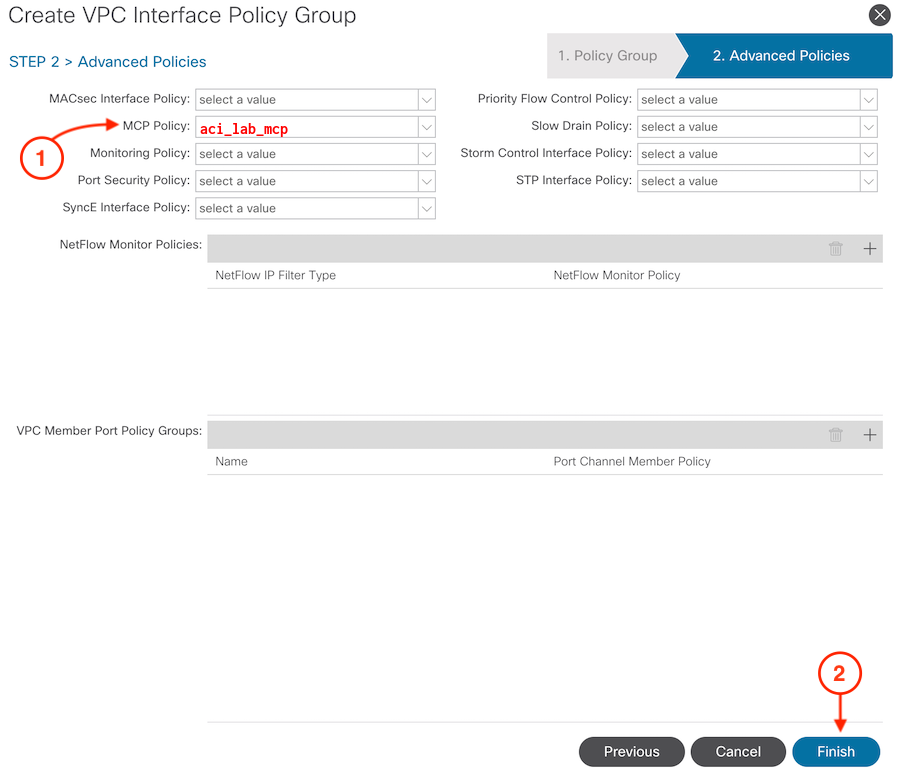

Step 3 - Create Advanced Policies for the Virtual Port-Channel

In the Create VPC policy Group - Advanced Policies popup:

  1. For MCP Policy, select aci_lab_mcp
  2. Click Finish

Verify your work and continue to the next section to complete your switch profiles.

Verify your work
