Step 1 - Click on the Template

Return to the main template:

  1. Click on DC3 Properties
  2. Click Template Properties
  3. Click Save

Step 2 - Deploy Schema to Sites

Your Schema Template is now ready to deploy!

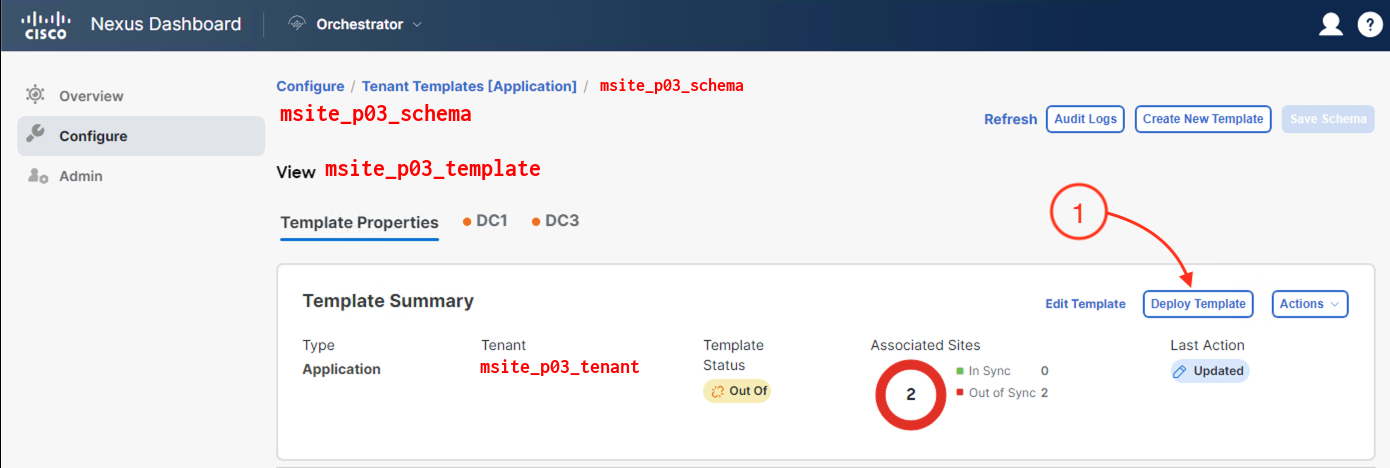

  1. Toward the top of the screen, find and click Deploy to Sites

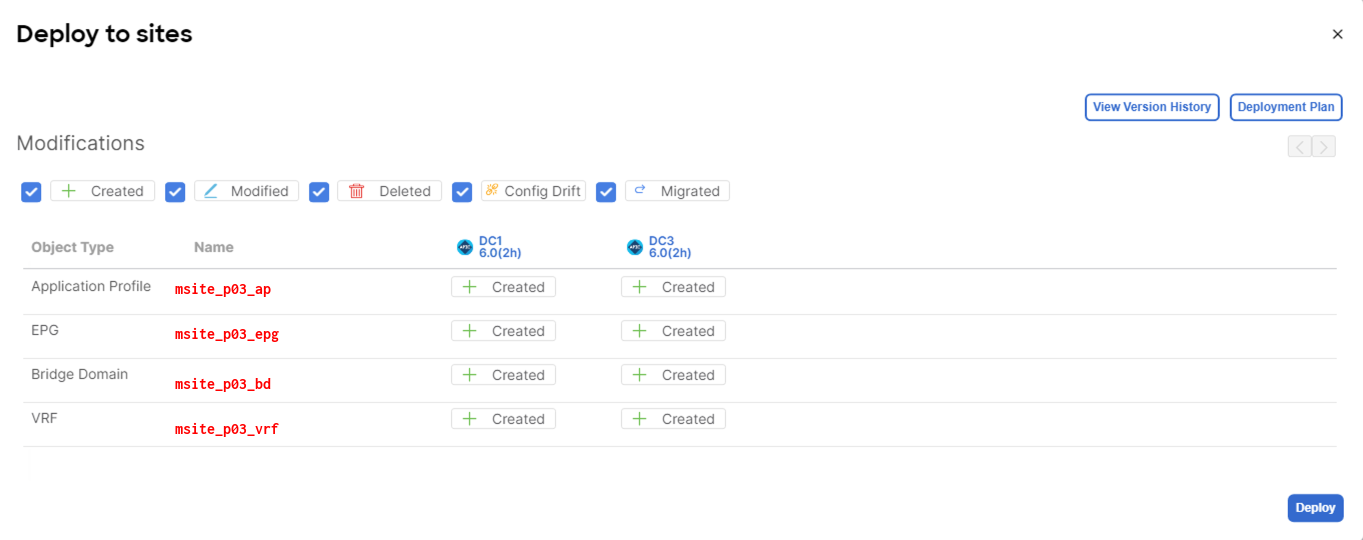

  2. You should see a pop up window called Deploy to Sites that verifies what will be deployed to each site that you selected prior:

  3. Click Deploy

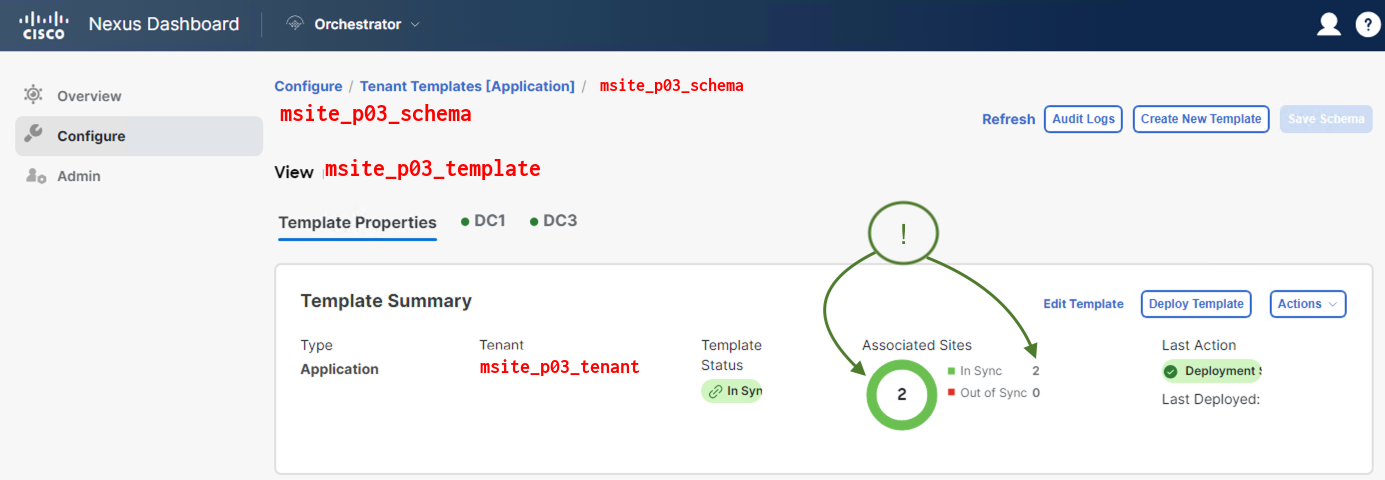

  4. Verify Sites are deployed and in sync

You can picture what has occurred below, MSO has created your Multi-Site Tenant across data centers along with stretching the VRF, BD, AP, and EPG.

Continue to the next section to verify connectivity across the Inter-Site Network (ISN) and the stretched ACI policies (Tenant, VRF, BD, AP, EPG) that you deployed through the MSO.
